<  BA Trackers  ~  Essential Engine bay Hoses!??

funkyp
Posted: Sat Nov 21, 2009 6:40 pm Reply with quote
Quickest 5sp A187 2.6 Joined: 09 Nov 2009 Posts: 968
Whos got a good pic??

1. Fuel Pressure Regulator
2. BOV
3. Vac Advance
4. OVCP--Wastegate
5. Front PCV--Intake
6. Rear PCV--Oil catch can--turbo inlet
7. Boost Guage

Everything else can be capped.


Last edited by funkyp on Thu Dec 23, 2010 4:29 pm; edited 1 time in total
View user's profile Send private message Send e-mail
funkyp
Posted: Sun May 16, 2010 6:36 am Reply with quote
Quickest 5sp A187 2.6 Joined: 09 Nov 2009 Posts: 968
Come on Bryan! Im sure youve got a pic stashed away somewhere!
View user's profile Send private message Send e-mail
CyberQuest
Posted: Sun May 16, 2010 1:39 pm Reply with quote
Site Admin Joined: 22 Mar 2010 Posts: 199 Location: Lancaster, Ohio
what exactly do you want a pic of, a chunk of rubber hose? Laughing

or you want pics of each of those components and where and how the lines are run?
View user's profile Send private message Send e-mail
funkyp
Posted: Mon Sep 27, 2010 5:40 pm Reply with quote
Quickest 5sp A187 2.6 Joined: 09 Nov 2009 Posts: 968
Yes, just some sort of good pic that others can use if they are curious how to route and what not. Maybe we can keep people from tapping the Vac Adv hose for their BOV! hahahaha
View user's profile Send private message Send e-mail
funkyp
Posted: Wed Dec 22, 2010 1:43 am Reply with quote
Quickest 5sp A187 2.6 Joined: 09 Nov 2009 Posts: 968

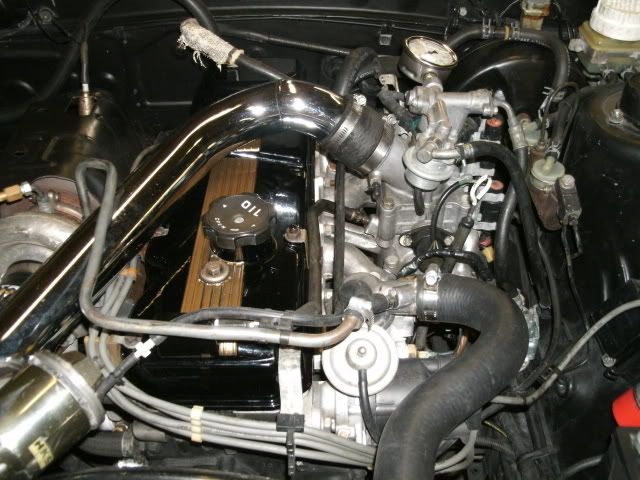

pic

_________________

4G54/R154/SC60/11.2 @ 120mph
Worlds Quickest true 5spd 2.6 SQ....
....Go ahead, prove me wrong lol
View user's profile Send private message Send e-mail
Professor Quest
Posted: Wed Dec 22, 2010 4:10 pm Reply with quote
SQ Guru Joined: 22 Mar 2010 Posts: 903 Location: Albuquerque NM
Vaccum port #5, 1/4", was only used in A/T applications.
Larger, MANIFOLD vacuum, should not be shared with anything
but A/T. 1/16" pipe thread. Would be plugged in a 5 speed.

Can be up-sized to 1/8" pipe thread on 5 speed.

Vacuum port #7, 11/32", is for POWER BRAKE BOOSTER ONLY.
Not to be shared. Has its own ONE-WAY valve in hose.

COOLANT hose is port #6.





Convert to 90* elbows= cleaner look. Rolling Eyes
BARBED fittings are NOT likly to be blown-off.





Port #12: To WASTEGATE to make it OPEN! Rolling Eyes






BOOST signals are best to be drawn from the OVCP, ABOVE
the BUTTERYFLY! Also best to have 1/4" diameter! Rolling Eyes



Calls for: Convert these to 90* elbows. Rolling Eyes
Boost/PSI side to the OVCP or turbo, compressor housing.



Vacuum ports, 1 thru 4.
1. is PORTED vacuum. Only sees vacuum/boost once the
butteryfly is opened. For Dizzy, vacuum advance/retard ONLY!

2. Restricted MANIFOLD vacuum/boost. Dependant of ALTITUDE,
maxes about 12 inches of vacuum.

3. Full time MANIFOLD vacuum/boost.

4. Standalone, MANIFOLD vacuum/boost. Used for HVAC & CC.
Has one-way valves. Often blown-off from boost.

All are 5/32" diameters.





KNOW...your vacuum/boost *HOSE*. SILICONE hose, when hot
and the THICKNESS of walls can allow it to collapse or blow-off
under boost. Rolling Eyes


Making HARDLINES is a CLEANER look. Cool

WHAT...is your vacuum/boost signal and WHEN
is it reported? Rolling Eyes T-in to know! Wink



Static fuel pressure is 36-38psi. With each additional boost pressure,
fuel pressure would increase one more pound.
Dizzy...goes into RETARD the VC, too.



Is your HVAC/CC hose blowing off? FLARE IT! Wink


TB is heated AND cooled! WHAT...suites your needs? Rolling Eyes

Port #5 is converted to 1/8" pipe to use a NYLON, vacuum boost
signal to a STANDALONE, vacuum/boost gauge.


Control factors: Typical, manual boost controllor.






Last edited by Professor Quest on Wed Dec 22, 2010 6:50 pm; edited 5 times in total

_________________
email PQ for parts: Waynescoolworld@netzero.net
View user's profile Send private message Send e-mail
funkyp
Posted: Wed Dec 22, 2010 6:25 pm Reply with quote
Quickest 5sp A187 2.6 Joined: 09 Nov 2009 Posts: 968
THATS AWSOME! I like what you did with the hardline! Thanks for the info.

_________________

4G54/R154/SC60/11.2 @ 120mph
Worlds Quickest true 5spd 2.6 SQ....
....Go ahead, prove me wrong lol
View user's profile Send private message Send e-mail
Professor Quest
Posted: Wed Dec 22, 2010 6:58 pm Reply with quote
SQ Guru Joined: 22 Mar 2010 Posts: 903 Location: Albuquerque NM
KNOWN FAULTS...that most people are not aware of. Rolling Eyes

If this hose is OEM...IT FRICKING LEAKS! Maybe, only when it sees
HIGH BOOST! AFR goes out-da-window! REPLACE IT! Rolling Eyes


What does port #8 do? Rolling Eyes The only thing I'm gonna
tell you... Rolling Eyes it's above the the BUTTERYFLY so it
sees BOOST! Very lil' vacuum, at all!

Meaning...PLACE A VACUUM/BOOST GUAGE ON IT! Rolling Eyes




WHAT...are the vacuum/pressure in your CRANKCASE? Rolling Eyes


"My hoses look fine." Heard that BS before! Rolling Eyes


If the LINER has collasped... Rolling Eyes you won't know it!





KNOW THIS: Rolling Eyes If a rubber hose is attached to the
INTAKE MANIFOLD/TB...It lives in HIGH HEAT that becomes
even HOTTER when BOOST is applied! Shocked

A PERFECT TOOL to find a external, vacuum leak! Wink
However, if you have a PRESSURE LEAK, it won't help you. Sad



Last edited by Professor Quest on Wed Dec 22, 2010 8:32 pm; edited 2 times in total

_________________
email PQ for parts: Waynescoolworld@netzero.net
View user's profile Send private message Send e-mail
Professor Quest
Posted: Wed Dec 22, 2010 8:13 pm Reply with quote
SQ Guru Joined: 22 Mar 2010 Posts: 903 Location: Albuquerque NM
funkyp wrote:
Whos got a good pic??

1. Fuel Pressure Regulator
2. BOV
3. Vac Advance
4. OVCP--Wastegate
5. Front PCV--Intake
6. Rear PCV--Oil catch can--turbo inlet

7. Boost Guage

Everything else can be capped.


Those SYSTEMS (in red) are NOT related to the others...AT ALL! Rolling Eyes

How many years have elapsed...while BS abounds?

Will you not believe a lil' commen sense? Rolling Eyes

I know, you believe they are related because the COMMON
part is the valve cover. You are WRONG to assume they
are related.

_________________
email PQ for parts: Waynescoolworld@netzero.net
View user's profile Send private message Send e-mail
funkyp
Posted: Wed Dec 22, 2010 10:29 pm Reply with quote
Quickest 5sp A187 2.6 Joined: 09 Nov 2009 Posts: 968
Oh they arent vacuum lines? Really?

Rolling Eyes

_________________

4G54/R154/SC60/11.2 @ 120mph
Worlds Quickest true 5spd 2.6 SQ....
....Go ahead, prove me wrong lol
View user's profile Send private message Send e-mail
CyberQuest
Posted: Thu Dec 23, 2010 12:52 am Reply with quote
Site Admin Joined: 22 Mar 2010 Posts: 199 Location: Lancaster, Ohio
heres how long my wastgate line was. i am a firm believer in the shorter the vac lines the better, if the signal has to travel thru ten miles of hose it will take longer to respond.


my car had 2 vac lines coming off the TB, one to the vac advance (port 1) and one to the Boost Gauge (port 3) i didnt have the heater control line hooked up because my car didnt have AC or HEAT Laughing





_________________
87 TSI SHELBY 2.6H R.I.P.
View user's profile Send private message Send e-mail
funkyp
Posted: Thu Dec 23, 2010 1:50 am Reply with quote
Quickest 5sp A187 2.6 Joined: 09 Nov 2009 Posts: 968
I assume you pulled the BOV vac from the runner?

_________________

4G54/R154/SC60/11.2 @ 120mph
Worlds Quickest true 5spd 2.6 SQ....
....Go ahead, prove me wrong lol
View user's profile Send private message Send e-mail
Professor Quest
Posted: Thu Dec 23, 2010 3:26 am Reply with quote
SQ Guru Joined: 22 Mar 2010 Posts: 903 Location: Albuquerque NM
funkyp wrote:
Oh they arent vacuum lines? Really?

Rolling Eyes


Only the PCV sees PARTIAL vacuum because
the PCV is restricked.

WHAT... Rolling Eyes does it suck-out? BLOW-BY.

The rear port VENTS the crankcase and dumps RAW OIL
into the oil seperator.

Instead of pissing-off the EPA, Laughing we VENT the oil seperator
into the ACCORDIAN hose. Nope... Rolling Eyes that's not a VACUUM.

_________________
email PQ for parts: Waynescoolworld@netzero.net
View user's profile Send private message Send e-mail
funkyp
Posted: Thu Dec 23, 2010 4:23 am Reply with quote
Quickest 5sp A187 2.6 Joined: 09 Nov 2009 Posts: 968
It goes to the turbo intake. Guess what is going on inside a turbo intake while its making boost....hmmmmm

I dont care if you disagree. This shit aint about you. Its about keeping people from taking the wrong shit off of their car. Anything else youd like to get all teary about?

_________________

4G54/R154/SC60/11.2 @ 120mph
Worlds Quickest true 5spd 2.6 SQ....
....Go ahead, prove me wrong lol
View user's profile Send private message Send e-mail
Professor Quest
Posted: Thu Dec 23, 2010 1:55 pm Reply with quote
SQ Guru Joined: 22 Mar 2010 Posts: 903 Location: Albuquerque NM
funkyp wrote:
It goes to the turbo intake. Guess what is going on inside a turbo intake while its making boost....hmmmmm

I dont care if you disagree. This shit aint about you. Its about keeping people from taking the wrong shit off of their car. Anything else youd like to get all teary about?


It makes a DRAFT... Rolling Eyes often confused with VACUUM.
That would DEFEIT a oil seperator...IF it was a vacuum. Laughing

Under boost, the PVC is 100% blocked, btw, as ANY would be.

Maybe... Rolling Eyes reading the FSM, "Introduction & Master Troubleshooting"
would shine some LIGHT on you.

_________________
email PQ for parts: Waynescoolworld@netzero.net
View user's profile Send private message Send e-mail
